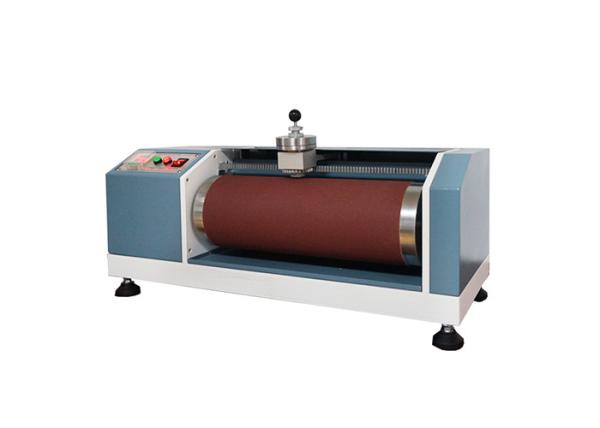

Abrasion Resistant Rubber Testing Machine , DIN Abrasion Tester GB-9867

Name: Abrasion Resistant Rubber Testing Machine DIN Abrasion Tester GB9867
Brand: HAIDA
Price: 1 USD

Quality Abrasion Resistant Rubber Testing Machine , DIN Abrasion Tester GB-9867 wholesale

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-P307

MOQ : 1 Set

Price : Negotiable

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Power : Electric

Port : ShenZhen

Power Supply : 1∮ AC 220V 3A(specified)

Weight (approx.) : 50KG

Roller wheel length : 460mm

Weight : 50kg

Contact Now

Abrasion Resistant Rubber Testing Machine , DIN Abrasion Tester GB-9867

1. Product description:

GB-9867 Rubber Abrasion Resistance DIN Abrasion Testing Machine is used to test abrasion resistance of elastic material, rubber, tire, conveyor belt, solo, soft synthetic leather and other materials.

2. Principle:

Under specified touched pressure and given area, when the sample and the abrasive paper get an angle,

test the abrasion resistance of the sample on the abrasive paper with certain rank.

Wrap the abrasive paper on the roller. The sample adpress on the roller with abrasive paper to make the sample

move horizontally along with the roller. Abrasion is produced on the one end of the cylinder sample. Measure the

loss value of the sample and calculate the abrasion resistance according to sample density.

3. Design criteria:
GB-9867 Rubber Abrasion Resistance DIN Abrasion Testing Machine reference standard: DIN-53516﹑ISO/DIS-4649﹑BS903 PART9 and GB-9867.

4. Main technical parameters:

Sample load	2.5N ±0.2N / 5 N ±0.2N
Roller wheel diameter	Φ(150 ±0.2)mm
Roller wheel length	460mm
Roller wheel revolving speed	40±1r.p.m
Abrasion stroke	40m equal to roller wheel turns number 84
Abrasion speed	0.32m/sec
Dip angle	3°(included angle between sample clamp holder and vertical plane of roller wheel)
Volume (approx.)	70cm ×30cm ×30cm
Weight (approx.)	50kg
Power	1∮ AC 220V 3A(specified)

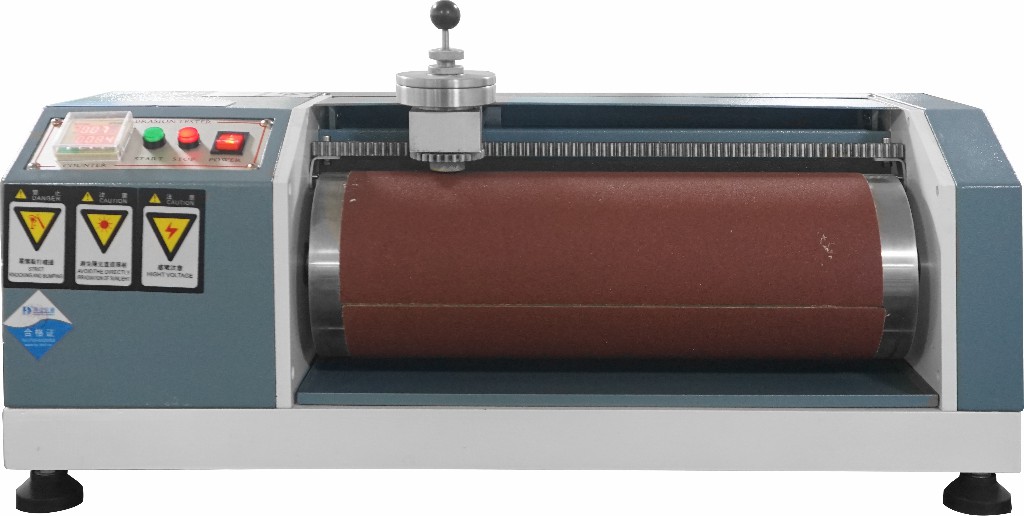

Abrasion Resistant Rubber Testing Machine , DIN Abrasion Tester GB-9867
