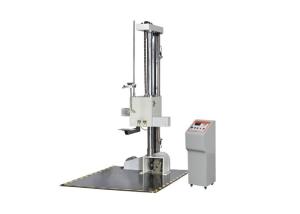

Digital Drop Package Testing Equipment 50Hz With LCD Display
Specifications
CE Certificated Digital Drop Package Testing Equipment
1.Test the damage degree when the package is dropped
2.CE certificated
3.Reasonable price
1. Function
CE Certificated Digital Drop Package Testing Equipment is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.
2. The comparison table of the package weight and dropping height:
CE Certificated Digital Drop Package Testing Equipment
| Weight | Height |
| No less than | Less than | Free-drop |
| Lbs | Kg | Lbs | Kg | Inch | mm |
| 0 | 0 | 21 | 10 | 30 | 760 |
| 21 | 10 | 41 | 19 | 24 | 610 |
| 41 | 19 | 61 | 28 | 18 | 460 |
| 61 | 28 | 100 | 45 | 12 | 310 |
| 100 | 45 | 150 | 68 | 8 | 200 |

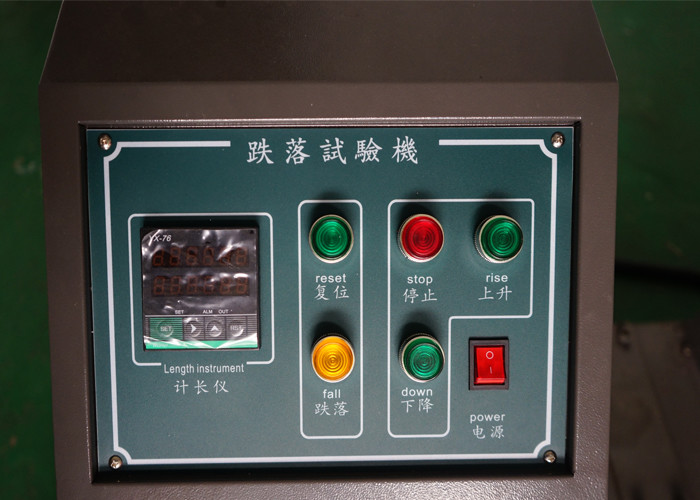

3. Operation of control chamber
A. CE Certificated Digital Drop Package Testing Equipment adopts electromagnet control system to control the dropping swing
B. CE Certificated Digital Drop Package Testing Equipment has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
4. The Technical parameters:
CE Certificated Digital Drop Package Testing Equipment
| Dropping height | 300mm-1500mm |
| Display method | digital display |
| Maximum weight of the package | 60kg |
| Maximum size of the package | (L×W×H)1000×700×1000mm |
| Size of the dropping panel | (L×W)1700×1400mm |
| Size of the swing | 200×150×8mm |
| Dropping deviation | ±10mm |
| Deviation of dropping horizon | less than 1° |
| Outside size | (L×W×H)1700×1200×2500mm |
| Chamber size | (L×W×H)350×350×1100mm |
| Weight | 550kg |
| Power | AC380V,50Hz |
5. Configuration
- Outside material: advanced paint coat
- Display: LCD display
- Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
- Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
- Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
- Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece
