Weathering UV Aging Test Chamber,Environmental Testing Chamber
Product Description
Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Applications Function
Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
Technical Parameters
| Item | Specification |
| Outside dimension | 1300W×500D×1460Hmm |
| Chamber material | SUS#304 stainless steel |
| Temperature range | RT～70℃ |
| Temperature fluctuation | ±2℃ |
| Temperature control | PID SSR control |
| Humidity range: | ≥95%RH |
| Controller | Programmable controller, LCD touch screen |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
| Lamp power | 40W/Piece |
| Distance from sample to lamp | 50±2mm |
| Centre distance between the lamp | 70mm |
| Irradiance | 0.45~1.0W/m2 (optional) |
| UV lamps | Imported Atlas UV-B: 280-315nm (8pcs, 1600h lifetime) |
| Standard Specimen Size | 75×290mm (24pcs) or 75x150mm (48pcs), max. thickness 5mm |
| Testing time | 0～999H, adjustable |
| Protection system | Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection |

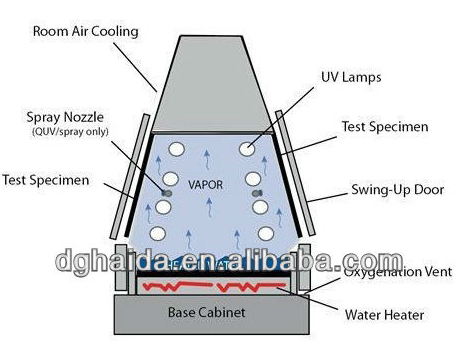

Chamber Structure
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Control System
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.
Test Specimen Mounting
The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.
Design Criteria
ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
IEC 61345: UV Test for Photovaltalic (PV) Modules

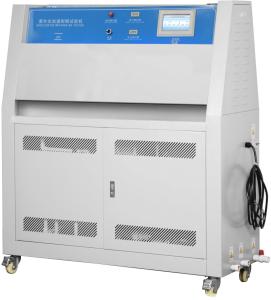

Poduct Image
