RT10-70 Degree Stainless Steel Environmental Test Chambers 500×500×600mm

Dongguan Haida Equipment Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

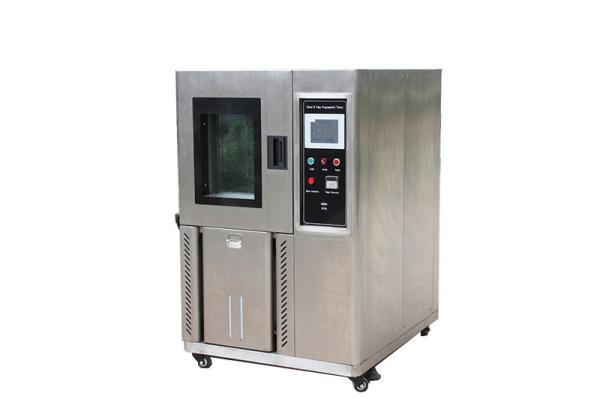

RT10-70 Degree Stainless Steel Environmental Test Chambers 500×500×600mm

  • 1
  • 2
  • 3

Brand Name : HAIDA

Model Number : HD-E702

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Product : Lab Temperature and Humidity Control Cabinet

Power : Electronic

Ozone Concentration : 5~200pphm (adjustable) 200~1000pphm(adjustable)

Temperature : RT 10~ 70°C

Ozone Produced Mode : Ozone generator or UV absorption method

Inside Air Velocity : over 2 feet/sec

Inside Size : 500×500×600mm

Air Flow : A.0-6 cfm;B. 10-20 cfh

Contact Now

RT10-70 Degree Stainless Steel Environmental Test Chambers 500×500×600mm

1. Function

Lab Temperature and Humidity Control Cabinet is used to provide precise and accurate ozone (O3) concentration environment for rubber and polymer. It is important to estimate the resistance of vulcanized rubber to cracking when exposed to an atmosphere containing ozone. During the test rubber specimens are kept under a surface tensile strain, and the ozone content or partial pressure in the test chamber is maintained at a fixed level.


2. Specifications:

Model

HD-E702

Ozone concentration

5~200pphm (adjustable) 200~1000pphm(adjustable)

Relative humidity

No humidity, but can produce according to your requirement

Temperature

RT+10~+70°C

Ozone produced mode

Ozone generator or UV absorption method

Inside air velocity

over 2 feet/sec

Degree of ozone concentration fluctuation

10%

Inside size

500×500×600mm

air flow

A.0-6 cfm;B. 10-20 cfh

weight

250kg

power

1,,AC220V,15A

accessories

tensile fixture 6 groups



3. Features:

1, Fully computerized for easy operation.
2, Ozone concentration, temperature, chamber humidity and its stability are controlled and dynamic monitored via computer.
3, Ozone concentration recorded automatically which ozone being detected automatically 0.1 sec one time and being displayed on the computer screen per 2 sec.
4, A modulus machine which simplifies equipment maintenance.
5, Co-development that ensures the machine with the best quality and most advanced technology, we would issue quality assurance certificate to every machine.


company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.


After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.


FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.


3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.


4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

How to Contact Us?
Please Send your inquiry Details in the below for our quotation,Click "Send" Now!
