Industry Paper Testing Equipments , Paper And Cardboard Thickness Guage

Name: Industry Paper Testing Equipments Paper And Cardboard Thickness Guage
Brand: HAIDA
Price: 1 USD

Quality Industry Paper Testing Equipments , Paper And Cardboard Thickness Guage wholesale

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-A833-5

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Measuring range : 0.01-10mm

Test standards : ISO 534,ISO 3034

Product name : Industry Paper Testing Equipments

Contact Now

Industry Paper Testing Equipments , Paper And Cardboard Thickness Guage

Specifications

1. 2. As per ISO438,534
3.Measuring range :0-6mm
4.widely used in paper, cardboard

Paper and cardboard thickness guage description:

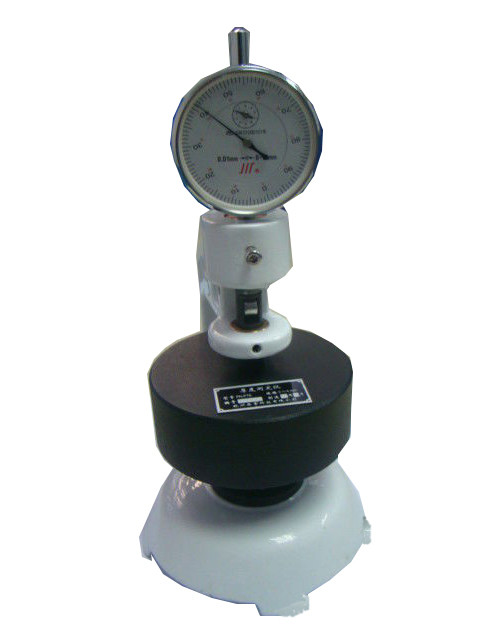

This Paper and cardboard thickness is a special apparatus to measure the thickness of paper and cardboard , widely used in paper, cardboard and other sheet materials, and it is an indispensable instrument for cardboard carton production, research and inspection.

Paper and cardboard thickness guage technical parameters:

Test standards	ISO 534,ISO 3034
Measuring range	0.01-10mm
Accuracy	0.01mm
Contact pressure	100±1 kPa
Contact area	200±5mm2
Parallelism	≤0.002mm
Dimensions	Ø14.2cm, H 20cm
Weight	About 3.2kg
