Stainless Steel Foam Flammability Tester Frame For Testing Furniture Flammability

Name: Stainless Steel Foam Flammability Tester Frame For Testing Furniture Flammability
Brand: HAIDA
Price: 1 USD

Brand Name : HAIDA

Model Number : HD-F781

Certification : CE，ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 30 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Inner dimensions of backrest frame : 450±2×450±2mm

Inner dimensions of chair frame : 450±2×300±2mm

The flow velocity of butane : 45+/-2ml/min（Temperature25℃）

Flame height : 35mm

Contact Now

Stainless Steel Foam Flammability Tester Frame For Testing Furniture Flammability

APPLICATIONS & TEST PURPOSE

This machine is used to simulate the ignitability of some special parts of furniture assembly placed in a certain sequence when ignited by a certain amount of heat, providing reference data for furniture design and manufacturing

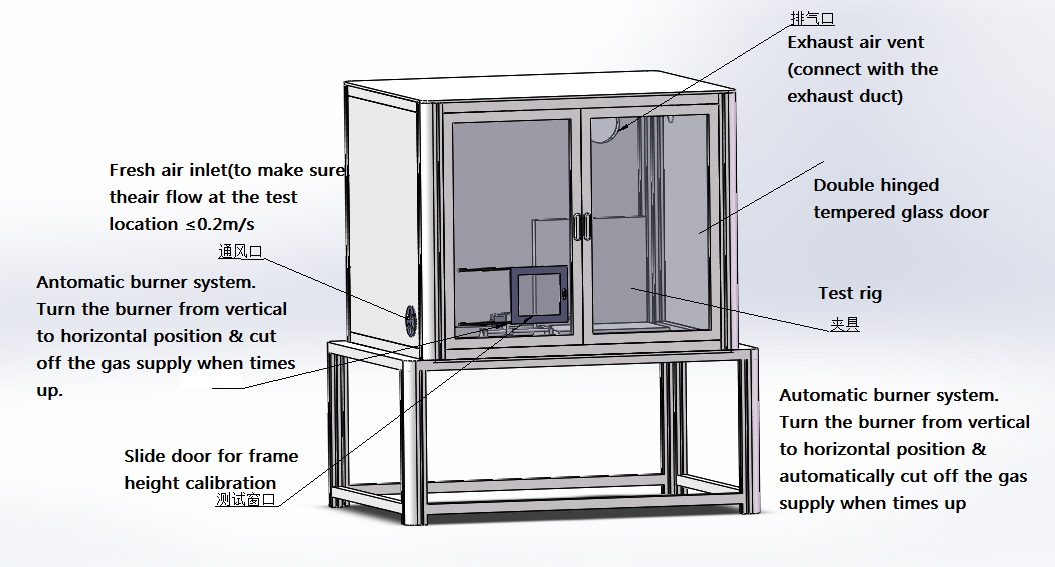

EQUIPMENT DETAILS

Stainless Steel Foam Flammability Tester Frame For Testing Furniture Flammability

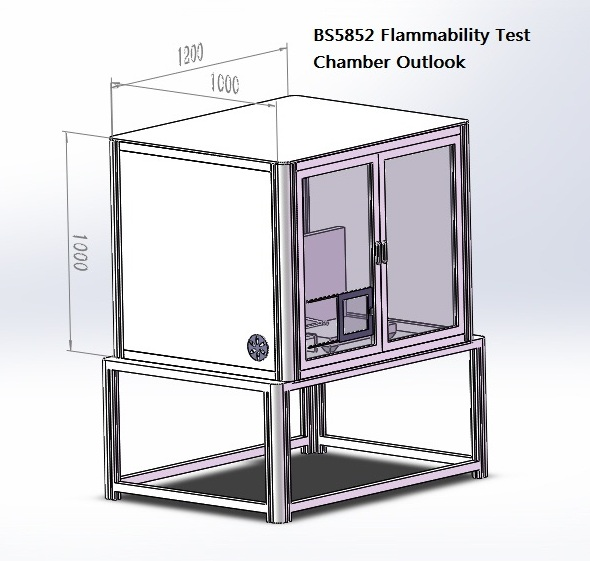

DESIGN PICTURE

Stainless Steel Foam Flammability Tester Frame For Testing Furniture Flammability

TEST STANDARD:BS 5852

STANDARD FEATURES

Inner dimensions of backrest frame	450±2×300±2mm
Inner dimensions of chair frame	450±2×150±2mm
Inner dimensions of backrest frame	450±2×450±2mm
Inner dimensions of chair frame	450±2×300±2mm
The flow velocity of butane	45+/-2ml/min(Temperature25℃)
Flame height	35mm
Stainless steel combustion tube outer diameter	8.0±0.1mm Inner diameter:6.5±0.1mm Length:200+/-5mm
Data on cigarettes	Length:68mm Diameter:8mm Weight:1g combustion speed: 50mm/12.03min
