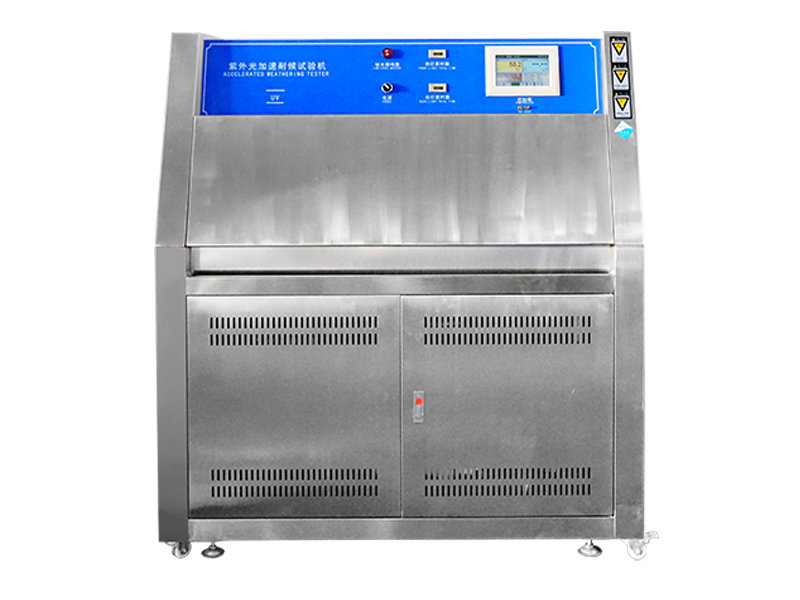

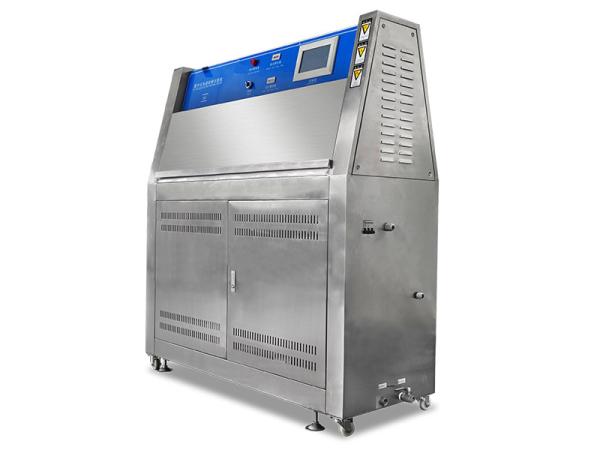

Environmental Lab Equipment UVA Simulated UV Test Uv Aging Chamber

Name: Environmental Lab Equipment UVA Simulated UV Test Uv Aging Chamber
Brand: HAIDA
Price: 1 USD

Brand Name : HAIDA

Model Number : HD-E802

Certification : CE,ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 30 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Chamber dimension (W*D*H) : 1300*500*1460mm

Chamber material : SUS#304 stainless steel

Temperature range : RT to 70℃

Temperature fluctuation : ≤±1.0℃

Temperature uniformity : 3℃

Humidity range : ≥75%RH

Controller : Programmable controller, LCD touch screen

Control mode : Balance temperature humidity control (BTHC)

Contact Now

Environmental Lab Equipment UVA Simulated UV Test Uv Aging Chamber

Applications

1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.

2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.

Standard Features

Item	Specification
Chamber dimension (WDH)	13005001460mm
Chamber material	SUS#304 stainless steel
Temperature range	RT to 70℃
Temperature fluctuation	≤±1.0℃
Temperature uniformity	3℃
Humidity range:	≥75%RH
Controller	Programmable controller, LCD touch screen
Control mode	Balance temperature humidity control (BTHC)
Test cycle setting	Exposure, condensation and water spray test cycle is programmable
Water spray cycle	Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage	8L/day
Distance from sample to lamp	55±2mm
Centre distance between lamps	65~70mm
Irradiance range	0.45~0.90W/m²
UV lamps	Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Lamp power	40W/Piece
Specimen Size	75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
Testing time	0~999H, adjustable
Protection system	Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection

Environmental Lab Equipment UVA Simulated UV Test Uv Aging Chamber
