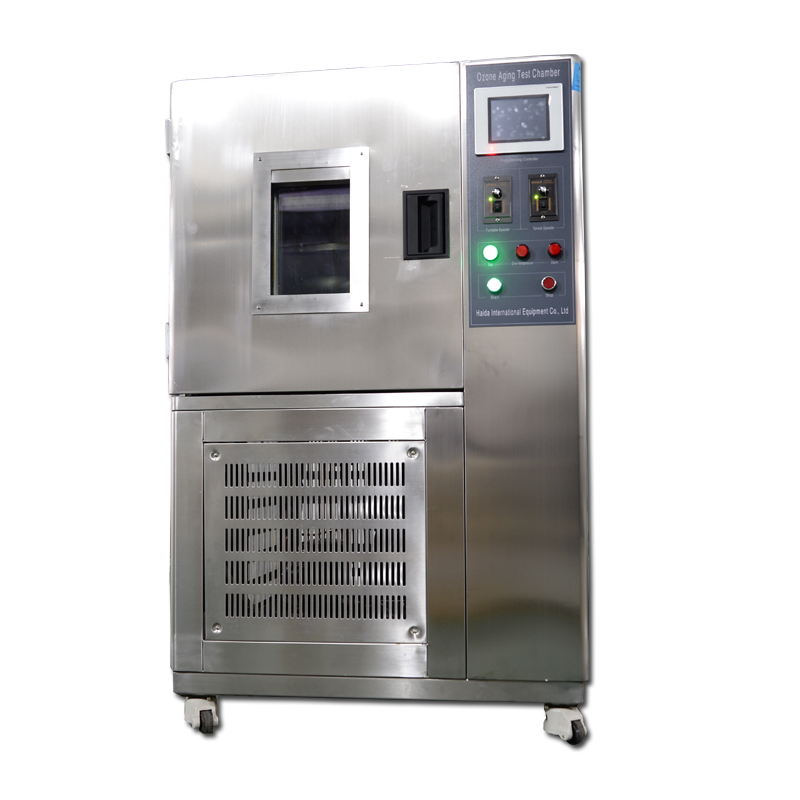

Customized Automatic Environmental Ozone Aging Test Chamber
Product Description
Ozone aging test chamber ptovides accurate ozone concentration environment for electric wire, rubber and polymer test etc. It widely applied to accelerated aging research quality control and assurance tests and R&D laboratory formula experiments for cracking resistance.
General Specifications
Packaging Dimensions: (WxDxH) 1200*1200*1950mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 280kg
HS Code: 8479899990
Standard Features
| Model | HD-E801 |
| Internal dimension (WxDxH) | 500*600*500mm |
| External dimension (WxDxH) | 1000*1000*1750mm |
| Temperature range | RT+10~ 60℃ (suggest to use 40℃±2℃) |
| Temperature Fluctuation | ±1℃ |
| Humidity range | 30%~90%RH |
| Humidity fluctuation | ±3%RH |
| Ozone concentration | 50~1000 pphm, adjustable |
| Ozone concentration deviation | ±10% |
| Sample holder | SUS#304 stainless steel |
| Temperature controller | Programmable touch screen controller |
| Ozone concentration analysis | Concentration analysis meter |
| Ozone generator | High pressure silence discharge type |
| Protection system | Leakage, short circuit, over temperature, over heat |
| Test criteria | ASTM D1149, ISO 1431, JIS K6259... |
Chamber Structure And Features
1, Internal material adopts high quality mirror stainless steel for ozone resistance.
2, Insulation material: high-density glass fiber
3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.
4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.
5, Chamber bottom has high quality caster for convenient move.
6, Observation window uses multilayer hollow tempered glass.
7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.
8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.
Control System
1, With imported micro-computer LCD controller to control the temperature.
2, PID control
3, With auto calculation function to reduce the setting inconvenience.
4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control
5, Temperature measurement: SUS#304, PT 100
Standard Configuration
1, Power line x 1pc
2, Sample holder x 1set
3, Fuse x 1set
4, Operation manual x 1set
